Jig Alignment System for xTool Omni UV Printer

Add it to any Omni jig order for $9.99 — that's $10.00 off, applied automatically at checkout. Put any Samcraft xTool Omni jig in your cart with this and the discount comes off on its own. No code to remember.

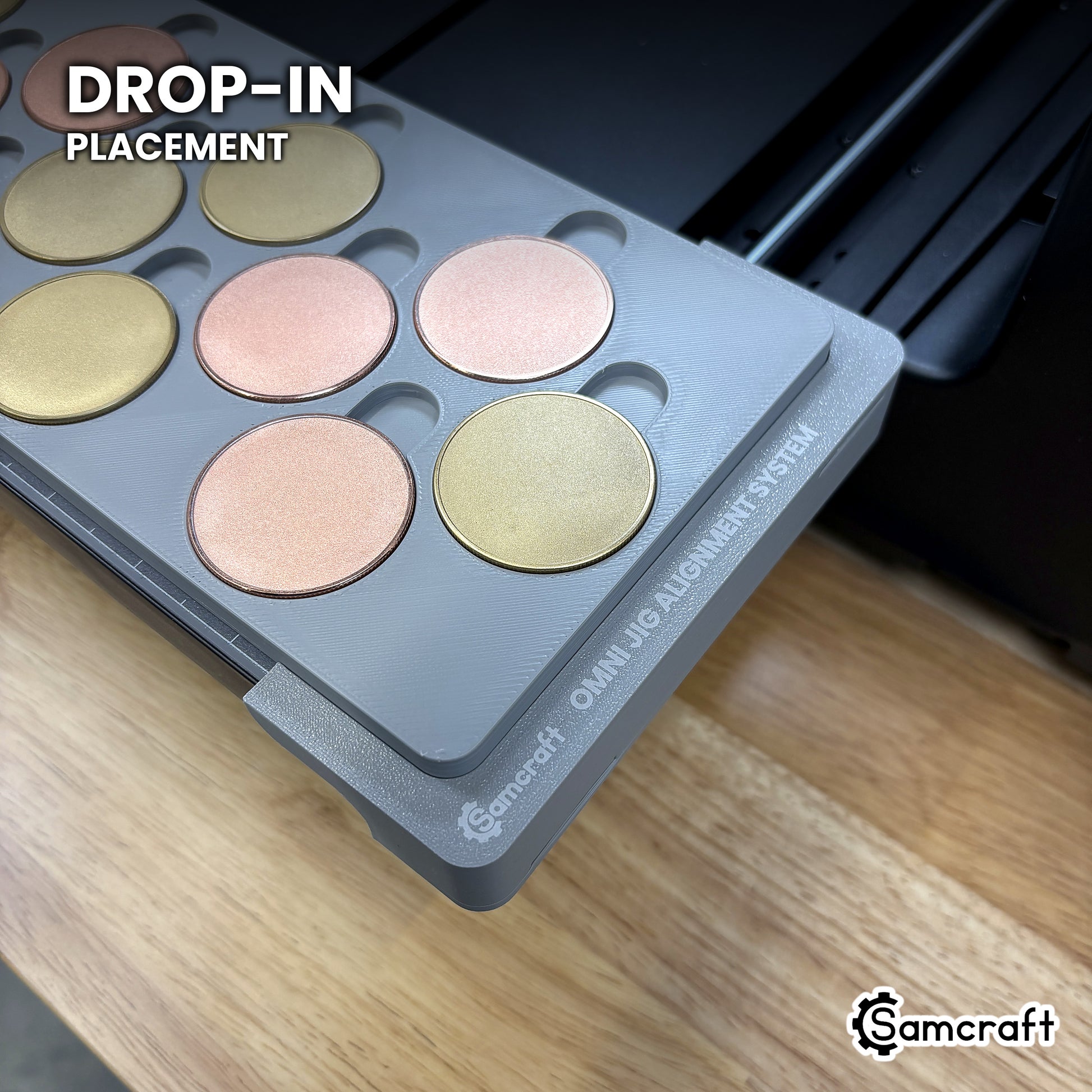

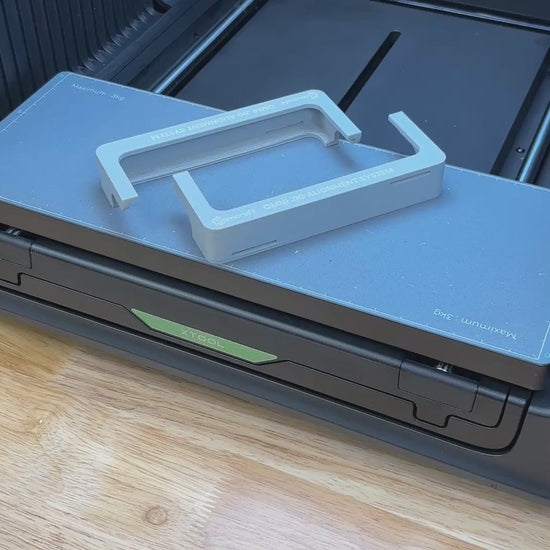

Square, centered, repeatable jig placement — every single time. The Samcraft Jig Alignment System locks your jigs into the exact same position on the xTool Omni UV Printer Standard bed. Slide the two pieces over the ends of the bed, drop your jig in, and print. No nudging, no eyeballing, no jig sitting a degree out of square.

Straight talk: you do not need this. The Omni already handles the hard part — xTool Studio and the built-in scanner work well right out of the box, so there's no calibration ritual here and no missing feature I'm selling you a fix for. What the scanner can't do is stop a jig from landing slightly rotated or slightly off-center when you swap it, or keep you from finding one sitting crooked under the mat halfway through a run. This is a convenience saver, and that's how I'd like you to judge it. Drop a jig in, know it's square and centered, get on with the job.

What's Included

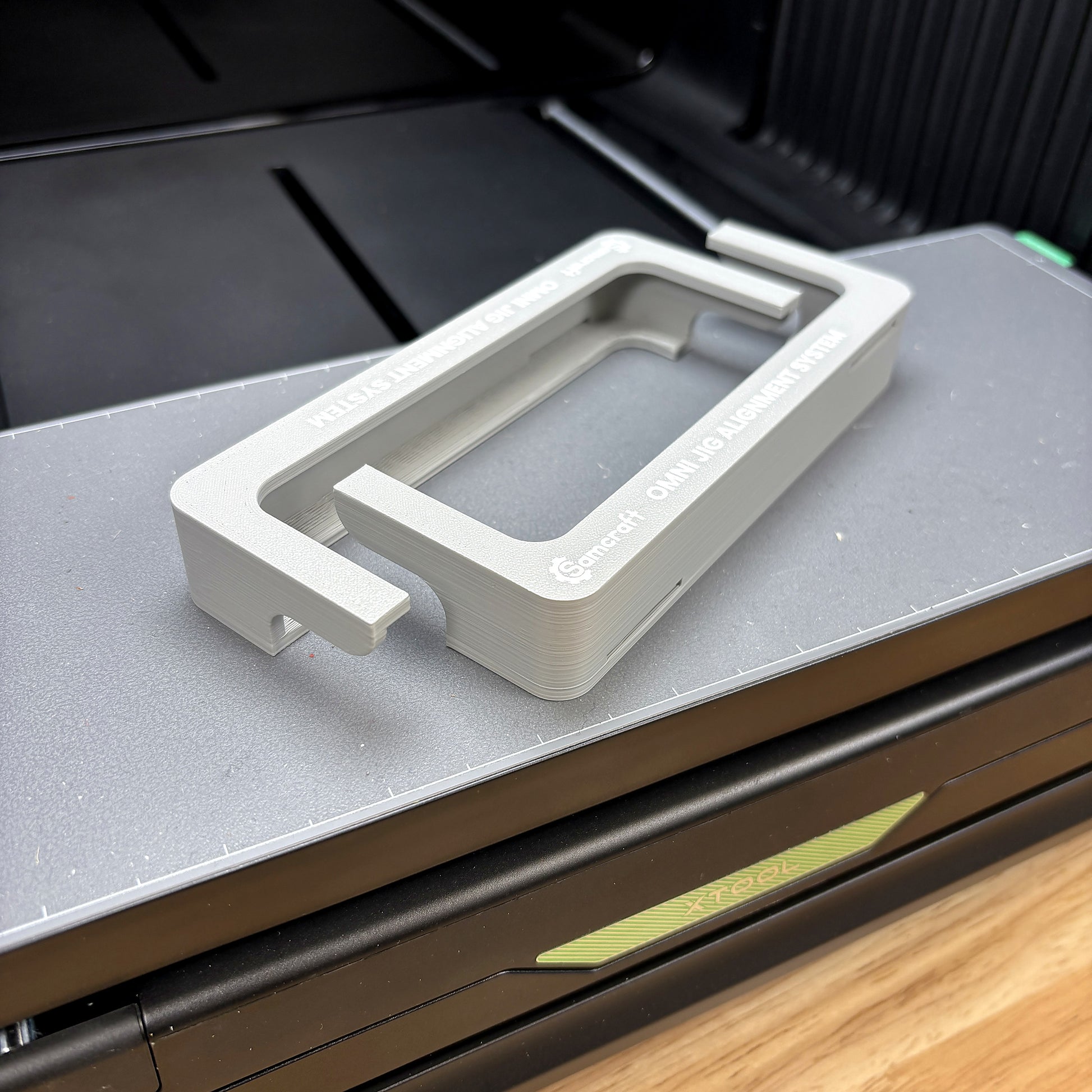

• (2) Samcraft Jig Alignment System pieces — either one fits left or right

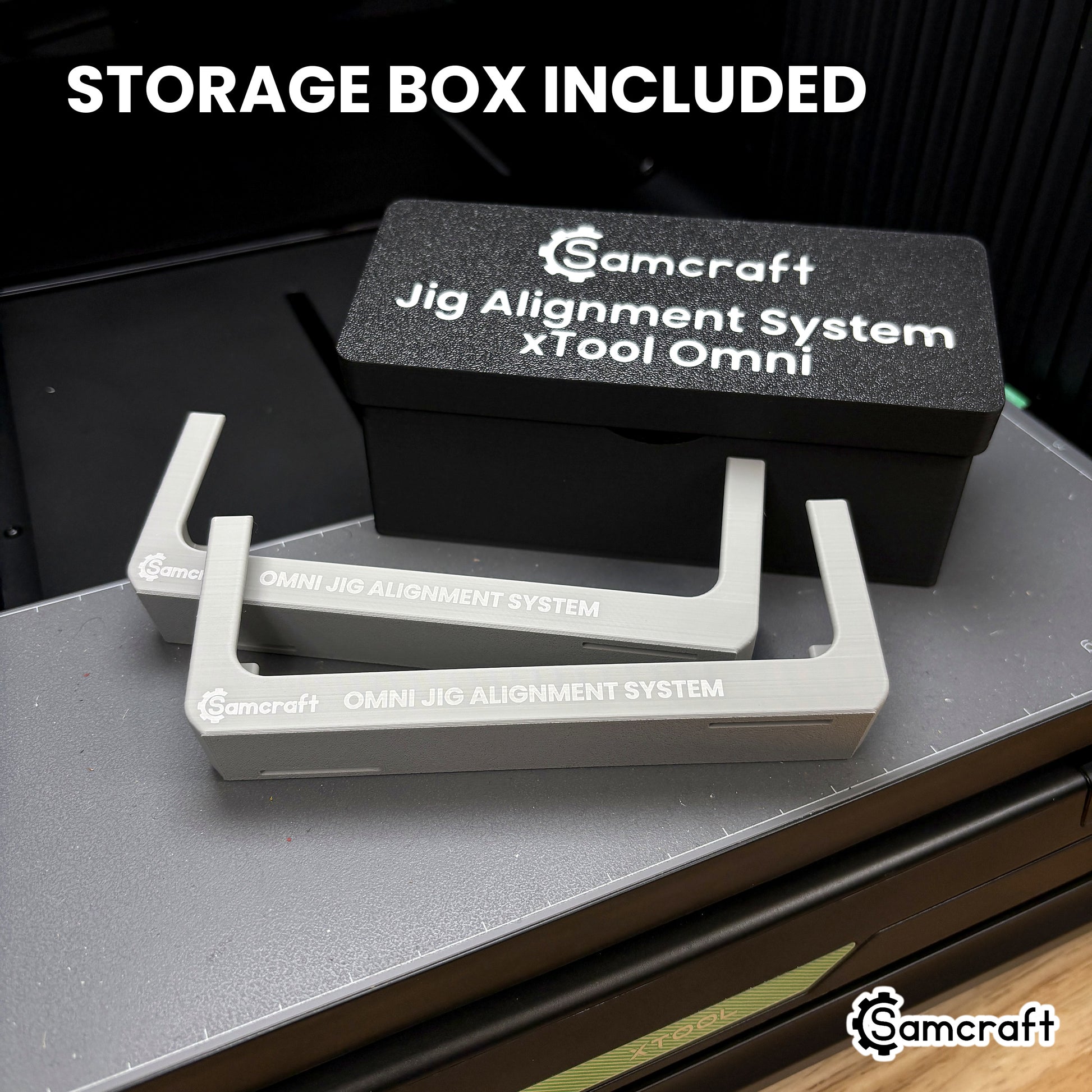

• (1) Printed storage box, labeled for the xTool Omni, sized to hold both pieces
• Digital quick-start guide

Pairing It With a FatMat

Worth knowing before you order: my Jig Size FatMat is cut to the same footprint as my Omni jigs, so it drops into the alignment system just like a jig does and the alignment system stays on the bed. My full-size Standard FatMat covers the whole bed instead, so with that one the alignment system has to come off every time you print something flat. If you want to leave this on the bed permanently, the Jig Size mat is the one you want — and the bundle saves you $7.00 on the pair.

Specs & Compatibility

• Compatible with: xTool Omni UV Printer — Standard bed only
• Does not fit: xTool Omni Large bed

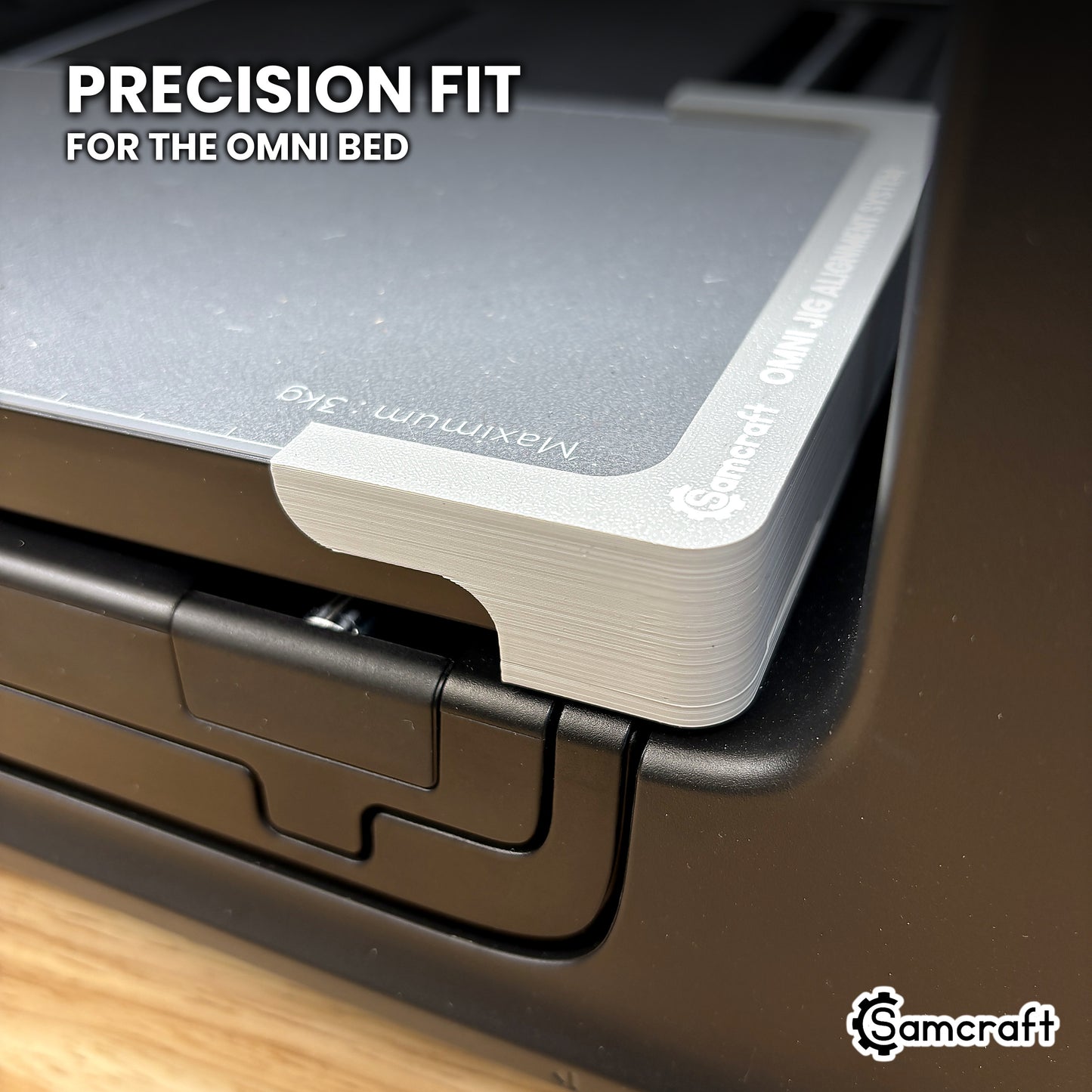

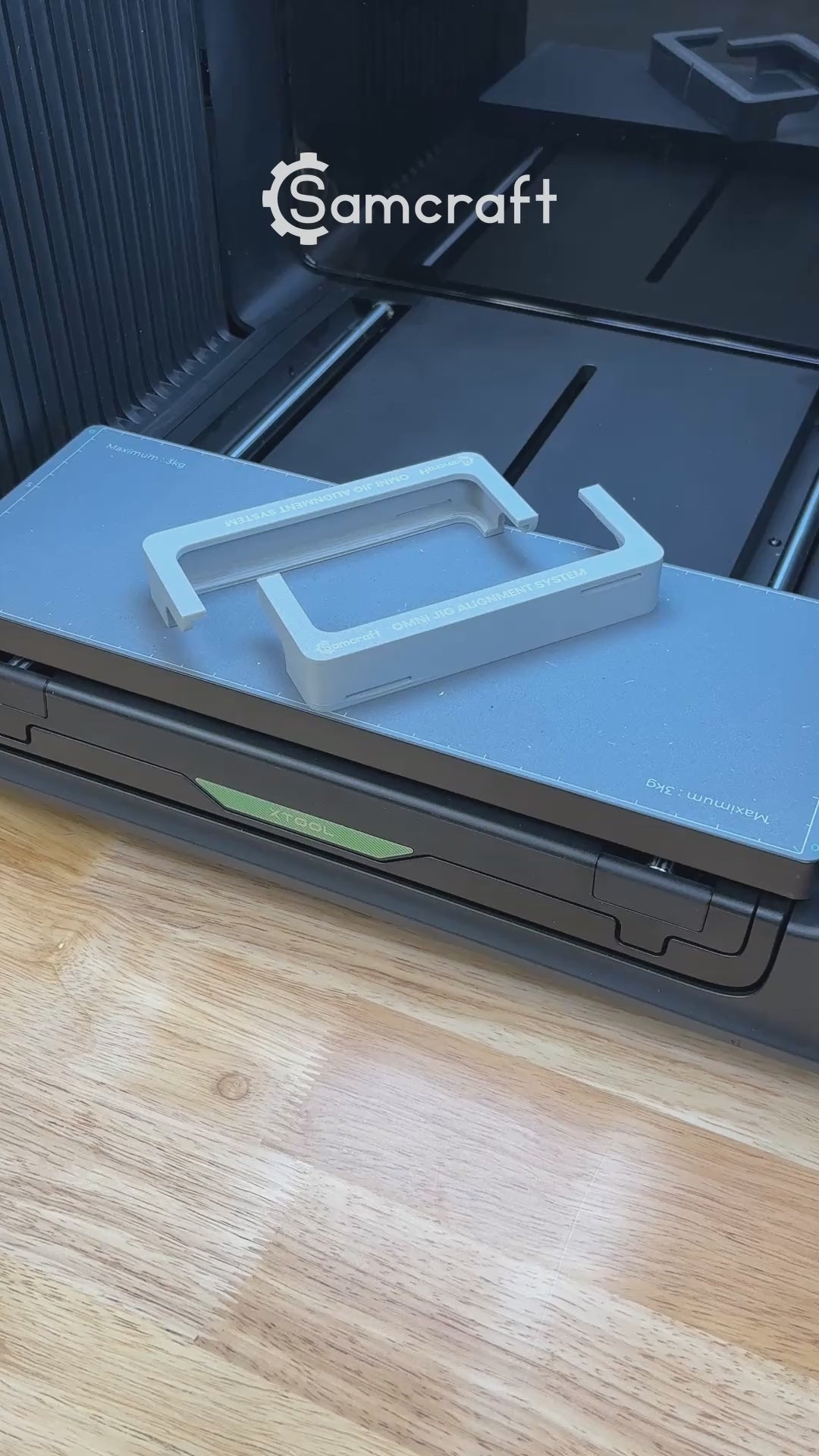

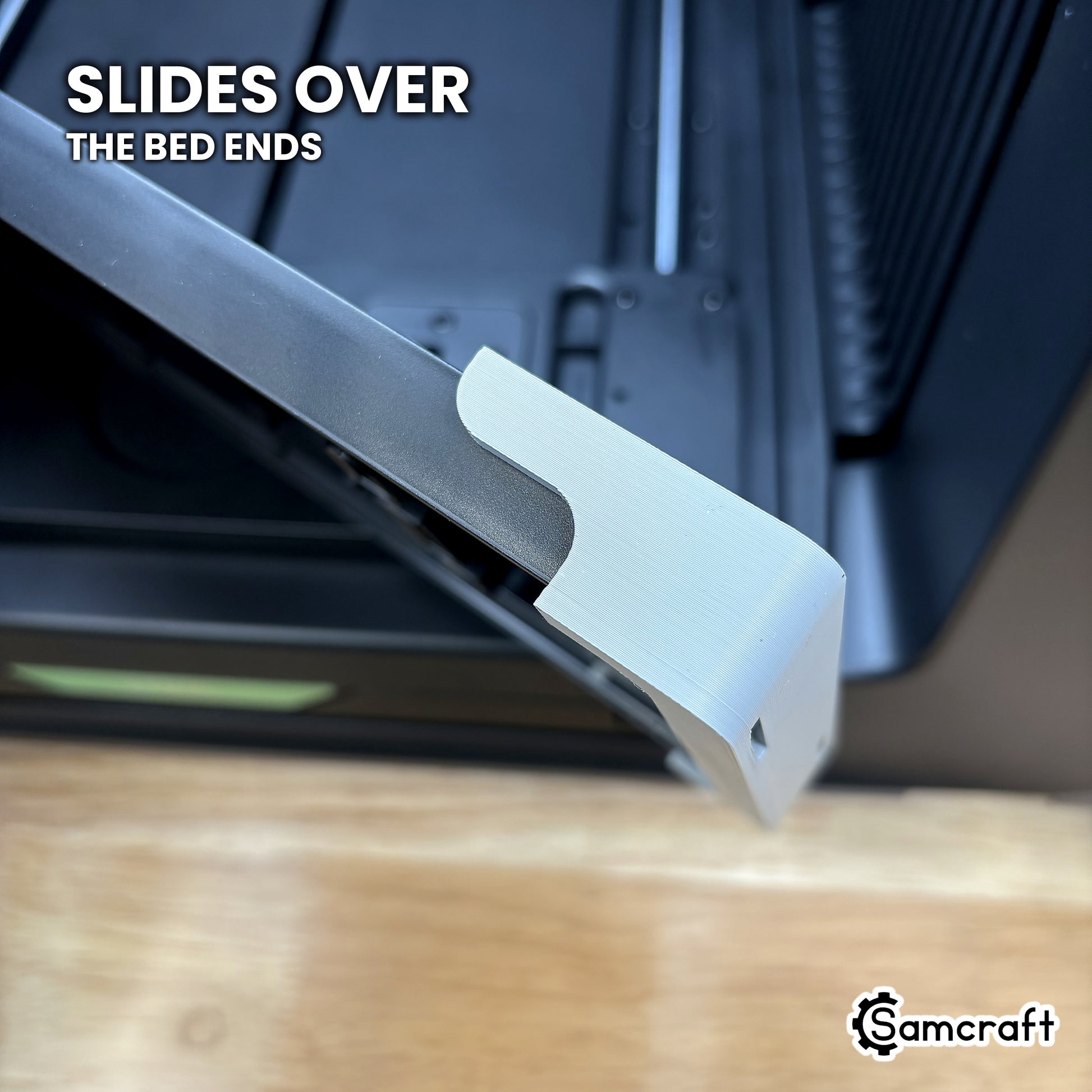

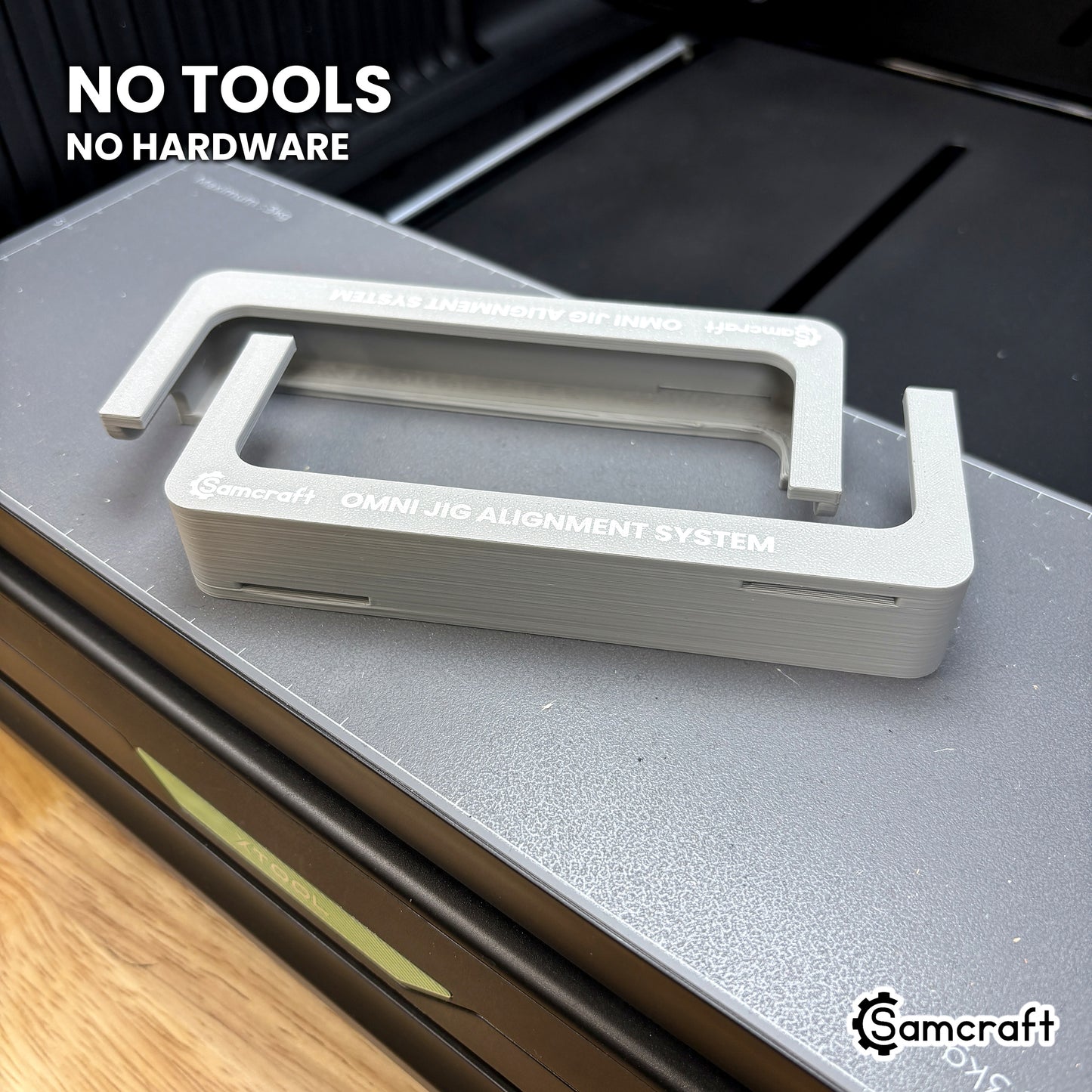

• Attachment: Two pieces slide over the ends of the Standard bed and seat into place — no tools, no hardware. Works with the bed installed in either direction, just like the bed itself

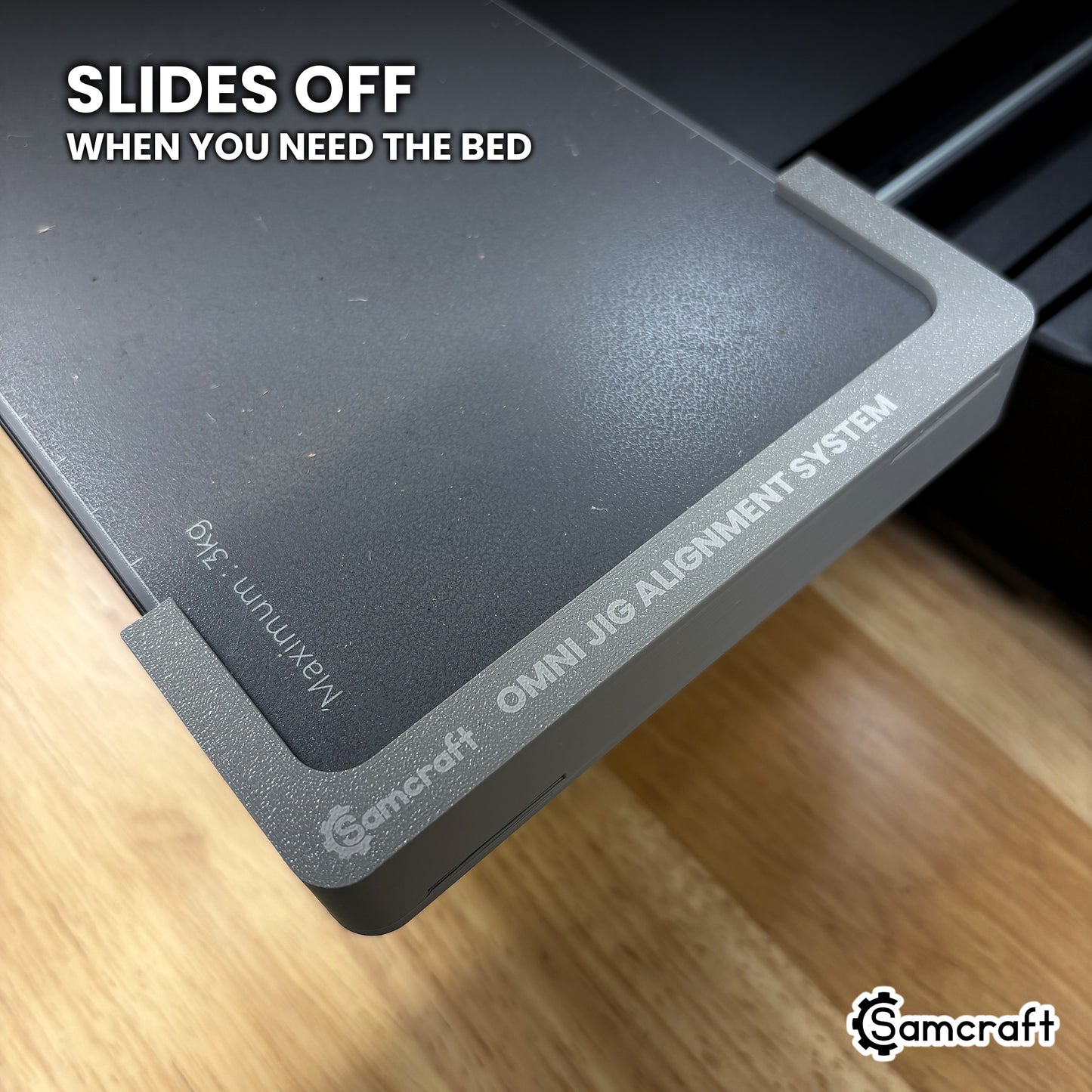

• Removal: Slides off the bed ends whenever you need the full bed for something else

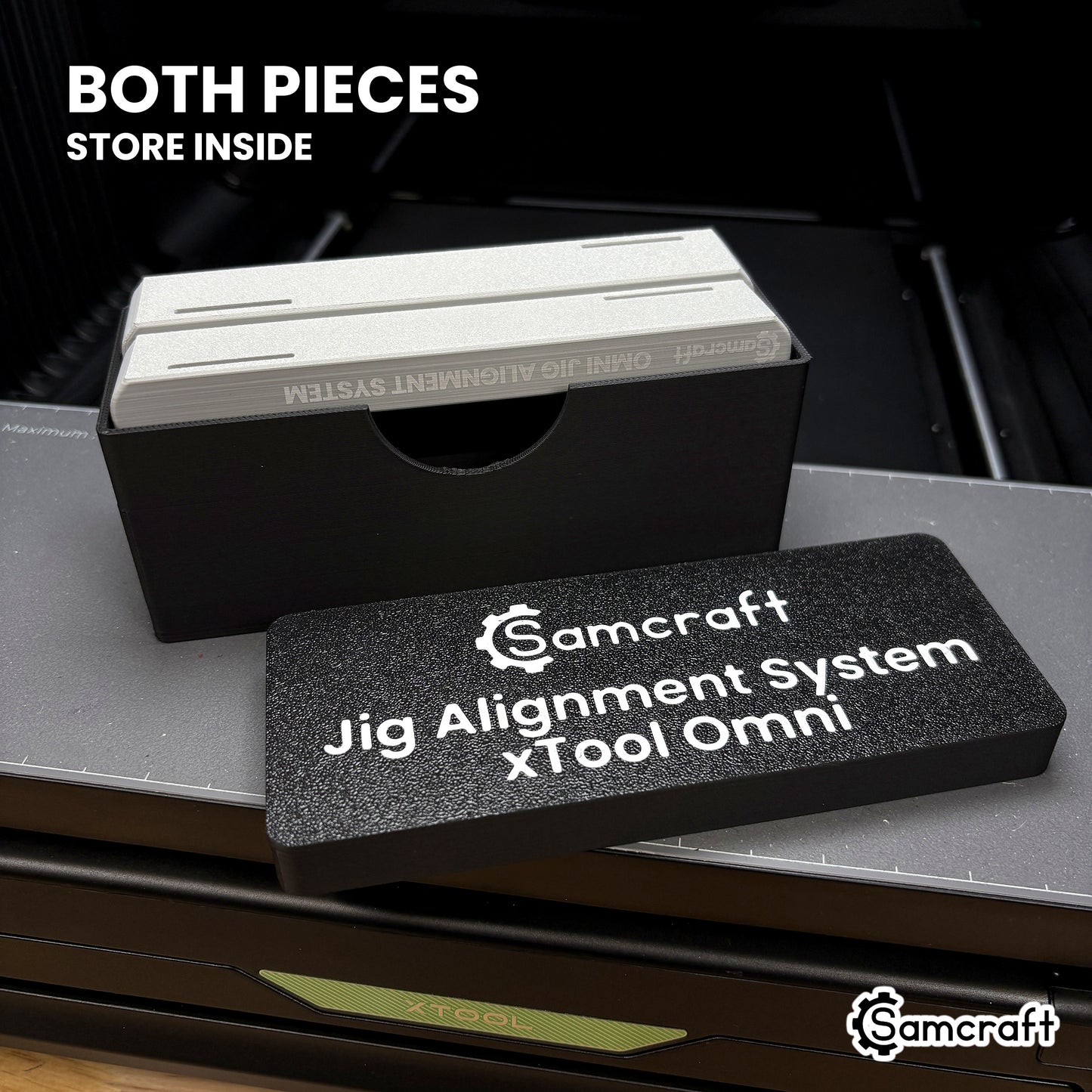

• Storage: Both pieces nest into the printed box that ships with the set

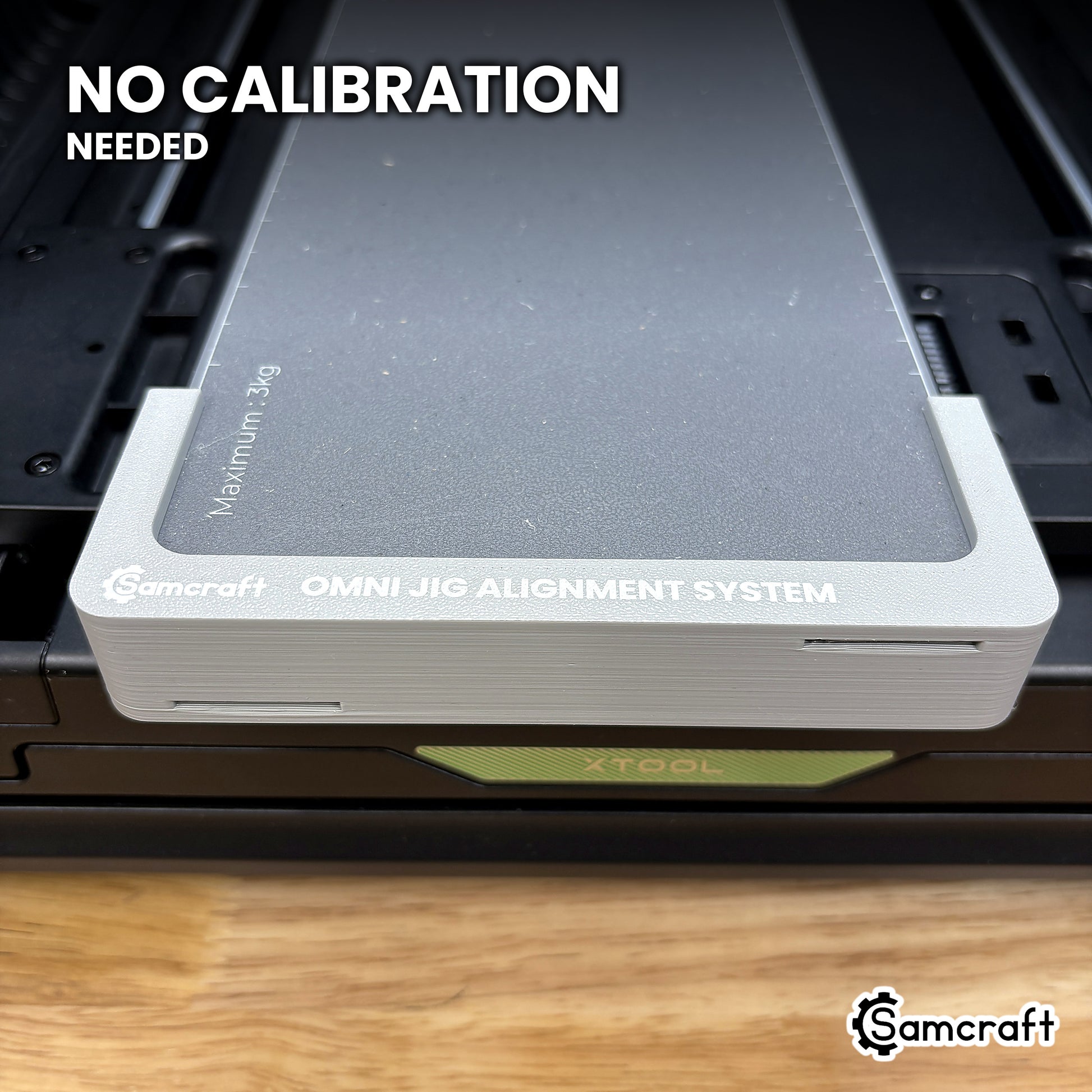

• Calibration: None required — the Omni's own scanner and xTool Studio handle alignment
• Material: High-temperature rated, precision-made plastic
• Origin: Made in Sam's Tennessee workshop
• Lead Time: Average 4 business days

Why the Samcraft Alignment System?

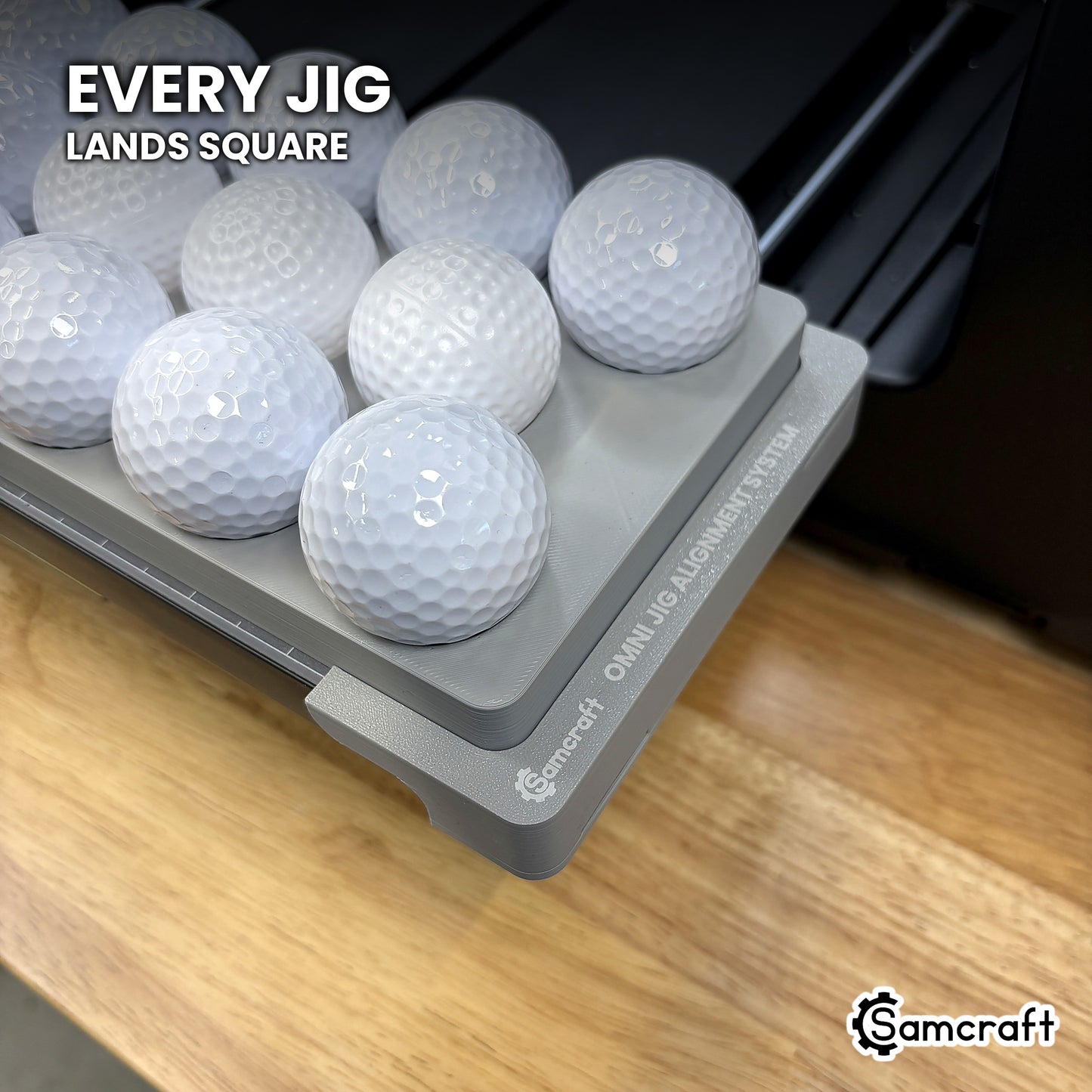

• Every jig lands square to the bed — no rotation creeping into your prints
• Same position every swap, so a repeat run matches the original
• Centered placement without measuring or nudging
• No more finding a jig sitting crooked under the mat partway through a batch

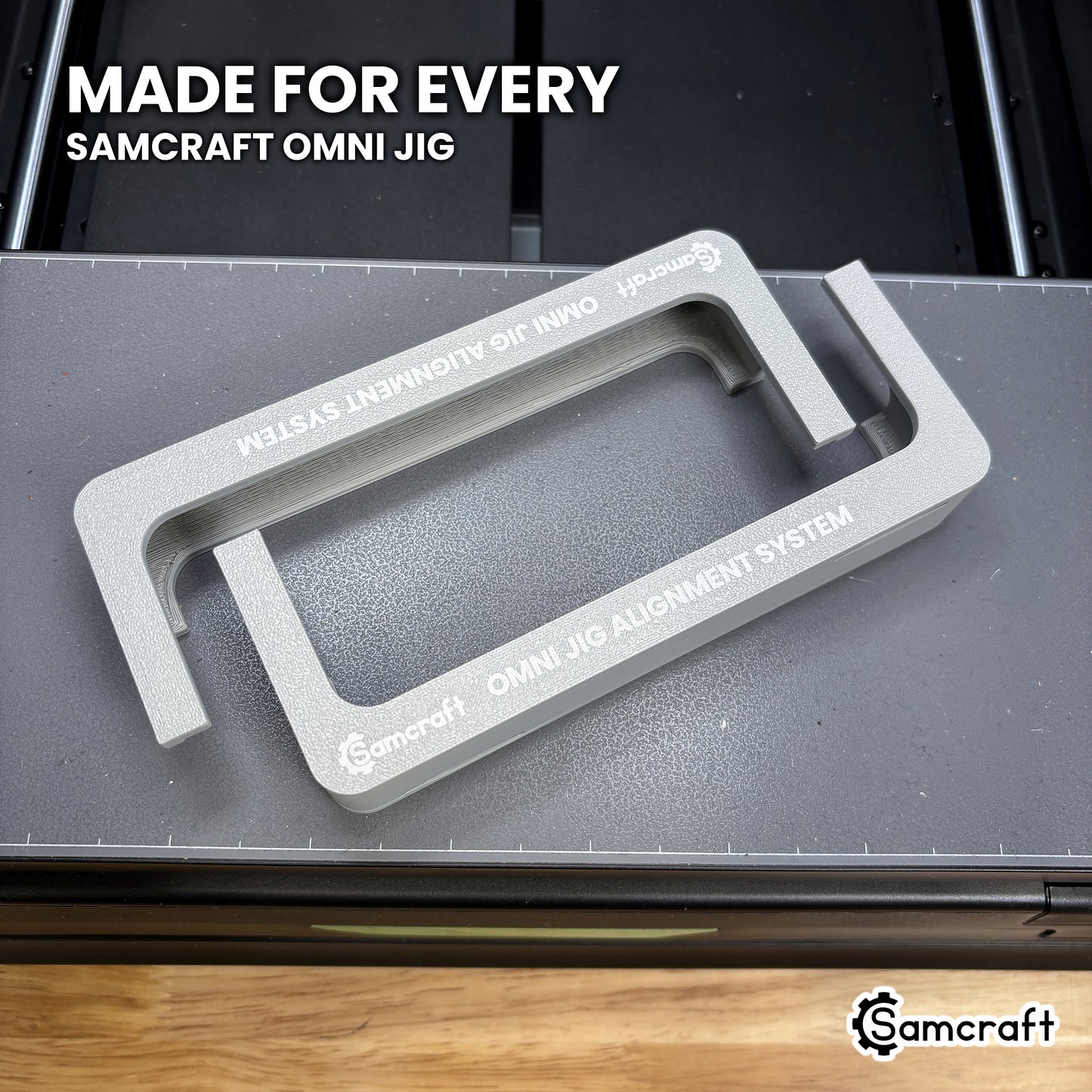

• Swap any Samcraft xTool Omni jig instantly
• Reduces wasted blanks from prints that land out of square
• No extra hardware needed
• Ships in a printed storage box, so both pieces stay together when they are off the bed

🔍 Browse all Samcraft xTool Omni jigs — all designed to work seamlessly with this alignment system, and adding this to any one of them takes $10.00 off.

Proudly made in Tennessee — average turnaround is 4 business days.
🎁 Have a custom idea? Message Sam about a custom jig.

Dialing in a new material, or want to check your machine? Start with my free UV Print Test Kit — free files, and how to read what they tell you.
